Giá: Liên hệ

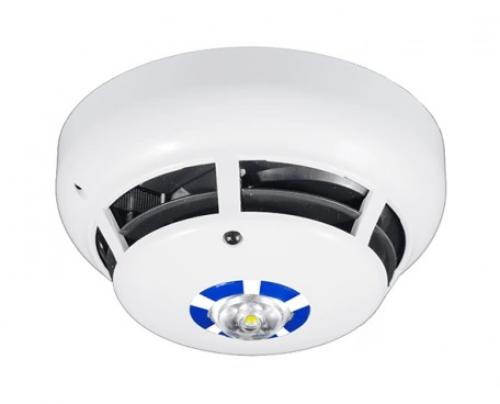

Đầu báo cháy địa chỉ Protec khói nhiệt kết hợp có chuông đèn chớp 6000PLUS-OPHT-SVAD

Dual Technology Sensor
Combined Smoke and Heat Sensor
Integrated Electronic Sensor
Integrated EN54-23 Visual Alarm Device
Loop Powered
Low Current
Programmable Volume Control
Integral Short Circuit Isolator
Protec Algo-Tec™ 6000PLUS Protocol
Devices Display Address Number
FAST™ Addressing
Reducing False Alarm
VAD Classification Adjustable from 3m to 7.5m Room Coverage Volume


The Protec Algo-Tec™ 6000PLUS sensor range has been developed to incorporate advanced fire sensing technology, electronic sounders, high intensity LED visual alarm devices (VAD) and speech enhanced talking sounder capability, all integrated within the sensor head and powered from the loop.

6000PLUS/OPHT/SVAD Interactive addressable high performance optical smoke and heat multi-sensor.

The dual technology multi-criteria fire detector uses detection of smoke by scattering of infra-red within the optical chamber coupled with thermal enhancement of the optical sensitivity, as well as providing temperature detection equivalent to grade A2. The smoke and heat channels can be controlled independently for day/night operation with intelligent data being evaluated by the Protec Algo-Tec™ 6000PLUS interactive programmable algorithms.

These sensors react across the range of fire products from large visible particles from smouldering fires to open flaming fires producing very hot smaller particles and are therefore suitable for use in all smoke detection applications. The environmental conditioning algorithms can be selected to filter unwanted alarms and enhance performance.

Sensor Sounder - The Protec Algo-Tec™ 6000PLUS/OPHT/SVAD sensor is equipped with an integrated loop powered electronic sounder with three programmable sounder tone options, constant, pulse or warble selectable by the control panel along with adjustable volume control. A loop short circuit isolator is also incorporated within the head. The sensor sounder tones are compatible with the full range of Protec 6000 electronic sounders.

Sensor VAD - Compliance with DDA legislation is assisted by the addition of the Protec visual alarm device (VAD) to the 6000PLUSensor, to warn those with hearing impairments or in noisy environments. The VAD utilises a high intensity LED with lower power consumption and increased reliability when compared to alternative indicators.
The VAD is located in the centre of the sensor, so can be viewed from all angles.
Suitable for ceiling mounting the VAD distributes light in a cylindrical pattern to achieve the required minimum illumination of 0.4lux over the entire coverage area in accordance with EN54-23.
The maximum mounting height is 3m with a coverage diameter of 7.5m.
For smaller areas the device can be programmed on-site for coverage diameter of 3m or 5m at reduced power.

Công ty TNHH TM & DV IPCA hân hạnh là nhà cung cấp Báo cháy Protec nhập khẩu chính hãng Anh có đầy đủ CO, CQ và các giấy tờ do cục pccc cấp chúng tôi cam kết chất lượng. Khi mua hàng được chúng tôi cung cấp, quý khách sẽ được bảo đảm về quyền lợi với chế độ bảo hành vô cùng hợp lý. Ngoài cung cấp sản phẩm Thiết bị báo cháy Protec, chúng tôi còn là đơn vị nhập khẩu nhiều hãng báo cháy nổi tiếng trên thế gới.
